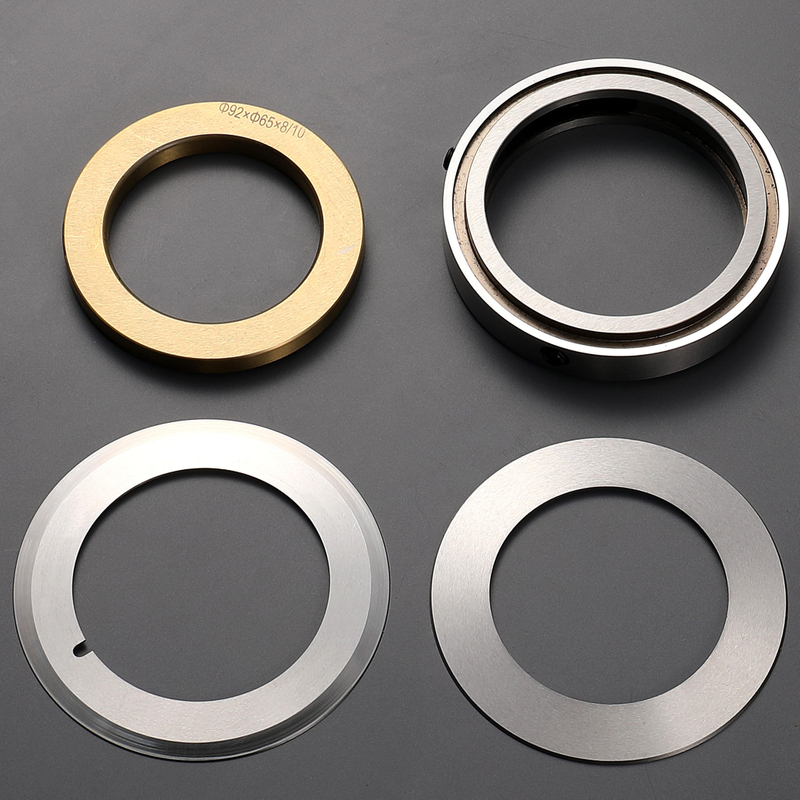

Wholesale Slitting Round Blade 105x70x1.2mm Upper Knife Nonwoven Machine Slitting Machine Blade

Special core components for industrial-grade slitting equipment, compatible with fully automatic / semi-automatic slitting machines. They are designed to achieve high precision and efficiency in slitting various materials such as films, papers, metal foils, and non-woven fabrics. They are widely used in industries including packaging, printing, electronics, and textiles.

Core advantage

High hardness material, with excellent durability

Selected **SKD11 cold working die steel, Cr12MoV alloy tool steel, and hard alloy (tungsten steel)** as high-quality base materials, after vacuum quenching + deep cold treatment, the hardness can reach HRC58-65. The wear resistance of the hard alloy model is 5-10 times that of ordinary steel. The high-frequency slicing operation does not dull or chip, significantly extending the service life.

Precise cutting edge, no flaws in slicing

Using CNC numerical control grinding + mirror polishing technology, the cutting edge is sharp and smooth, with precise angles, and the surface roughness is as low as Ra0.2μm. The slicing of films does not stick to the knife, paper does not stretch, and metal foil has no burrs. The cutting edge is flat and has a high verticality, effectively improving the yield and reducing material loss.

Versatile in multiple scenarios, with wide applicability

Covering **thin materials (PE film, OPP film, copper foil), medium-thick materials (kraft paper, woven fabric), and hard materials (aluminum foil, metal sheet)**. It can be customized for the diameter (50-500mm), thickness (0.5-10mm), and cutting edge type (flat edge, tooth edge, inclined edge) according to the equipment model. It is compatible with vertical slicing machines, horizontal slicing machines, surface winding slicing machines, and other types of equipment.

Coating strengthening, performance upgrade

Optional coating treatments such as titanium plating, aluminum nitride titanium plating can be selected. Not only does it increase the wear resistance by 2-3 times, but it also has anti-adhesion and corrosion resistance properties. For packaging films with strong adhesion and high-temperature working scenarios, the coated blade can effectively reduce the probability of jamming, ensuring the continuous and stable operation of the production line.

Scope of Application

Processing Materials: Plastic films (PE/PP/OPP), paper (kraft paper, coated paper), metal foils (copper foil, aluminum foil), non-woven fabrics, woven fabrics, tapes, etc.

Compatible Equipment: Fully automatic cutting machines, semi-automatic cutting machines, high-speed striping machines, rewinding cutting machines.

Application Industries: Packaging printing, electronic and electrical products, textile and clothing, lithium battery manufacturing, tape production.
